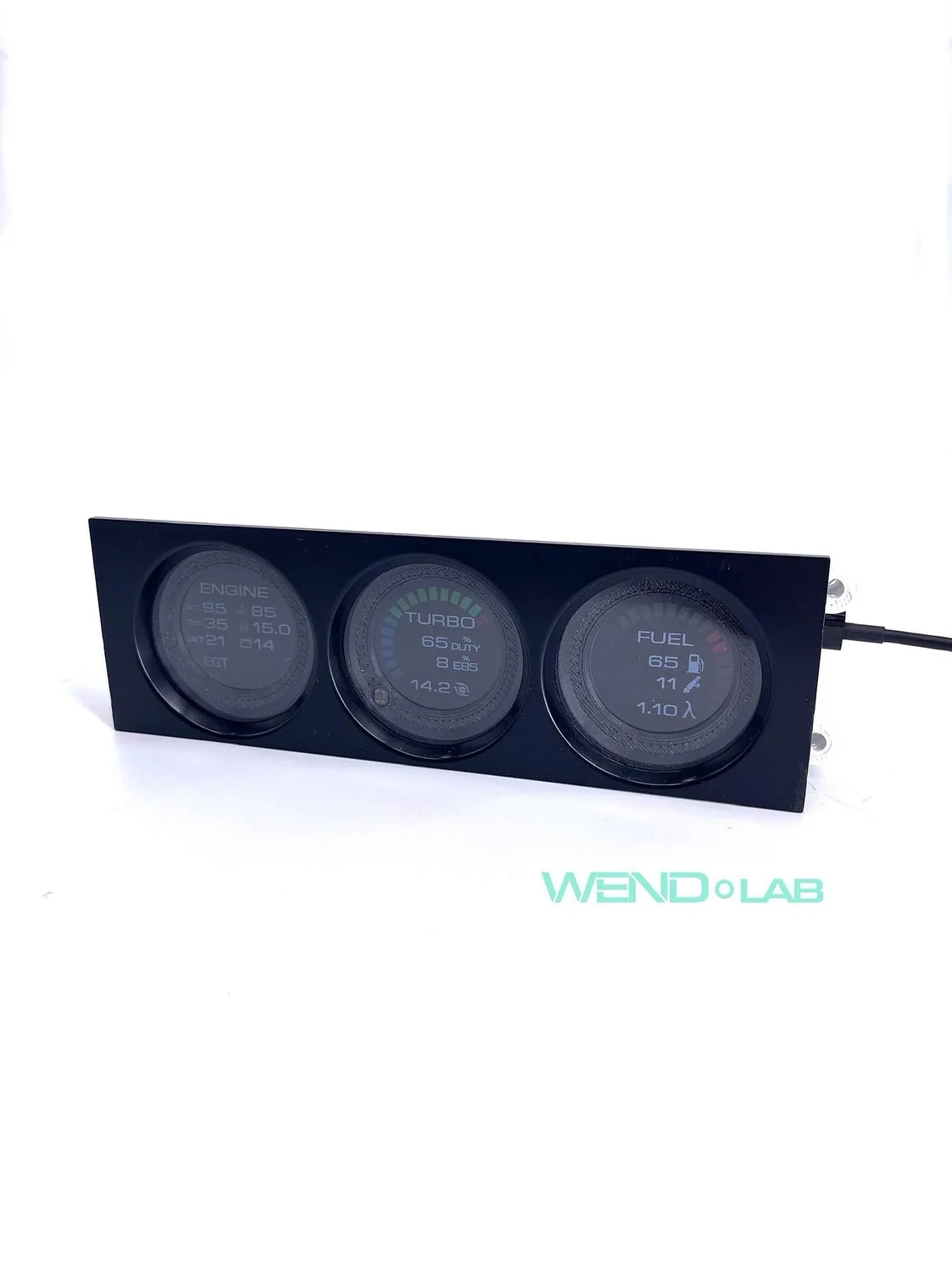

WEND Lab R32 Skyline DIN Triple CANBUS Gauge

This CANBUS gauge replaces the factory DIN triple meter in your R32 Skyline.
It features 3 fully configurable gauges to take advantage of the CANBUS data stream from your aftermarket ECU.
It is made in the USA with the case 3D-printed in temperature-resistant ASA plastic and purpose-designed electronics.

Features :

• Customisable appearances
• Configurable warning levels
• Configuration via IOS App over Bluetooth (Android Support coming in 2024)
• Auto-dimming displays with night mode
• Single DTM 4 pin connector wiring
• Direct replacement of factory unit -- uses factory trim bezel

Supported ECUs :

• Haltech (CAN protocol v2)
• Link (G-Series)
• Emtron (KV Series)

Platforms in Development :

• MoTeC 1 Series
• ECUMaster Black Series

Requires a DTM-4 cable for installation

See install instructions for details

Supported gauges
(Requires that your ECU has the appropriate sensors and CAN configuration) :

• Battery Voltage
• Water Temp
• Oil Temp
• Fuel Temp
• Intake Air Temp
• Exhaust Gas Temp
• Water Pressure
• Oil Pressure
• Fuel Pressure
• Boost Pressure
• Air Fuel Ratio
• Ethanol Content
• Injector Duty
• Throttle Position
• Tire Temp/Pressure
• Fuel Tuning (AFR, Fuel Pressure, Injector Duty)
• Engine Health (Oil Temp/Pressure, Water Temp/Pressure, IAT, Voltage, EGT)
• Boost Control (Boost vs. Target, Solenoid Duty, Ethanol %)
• Gear Position
• Speedometer
